Documentation for AIXM 5.1.1
Definition Type: Element
Name: TopoVolume
Namespace: http://www.opengis.net/gml/3.2
Type: gml:TopoVolumeType
Containing Schema: topology.xsd
Abstract
Documentation:
gml:TopoVolume represents a homogeneous topological expression, a set of directed topologic solids, which if realised are isomorphic to a geometric solid primitive. The intended use of gml:TopoVolume is to appear within a solid feature to express the structural and geometric relationships of this solid feature to other features via the shared solid definitions.

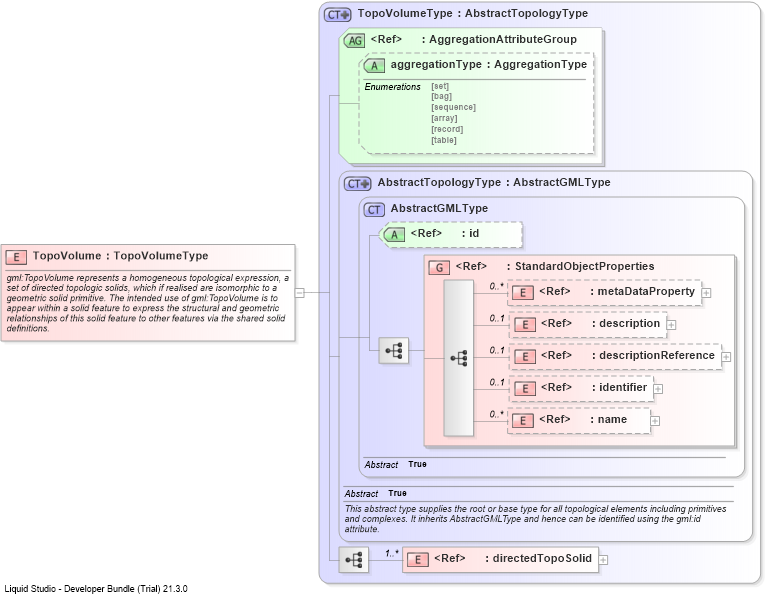

Collapse XSD Schema Diagram:
Drilldown into directedTopoSolidDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into AbstractTopologyTypeDrilldown into aggregationTypeDrilldown into AggregationAttributeGroupDrilldown into TopoVolumeTypeXSD Diagram of TopoVolume
Collapse XSD Schema Code:
<element name="TopoVolume" type="gml:TopoVolumeType">
    <annotation>
        <documentation>gml:TopoVolume represents a homogeneous topological expression, a set of directed topologic solids, which if realised are isomorphic to a geometric solid primitive. The intended use of gml:TopoVolume is to appear within a solid feature to express the structural and geometric relationships of this solid feature to other features via the shared solid definitions.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
directedTopoSolid gml:directedTopoSolid (1) unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
aggregationType gml:aggregationType (Optional)
Collapse Derivation Tree:
