Documentation for AIXM 5.1.1
Definition Type: Element
Name: directedTopoSolid
Namespace: http://www.opengis.net/gml/3.2
Type: gml:DirectedTopoSolidPropertyType
Containing Schema: topology.xsd
Abstract
Documentation:
The gml:directedSolid property element describes the coBoundary of topology faces and is used in the support of volume features via the gml:TopoVolume expression, see below. The orientation attribute of type gml:SignType expresses the sense in which the included solid appears in the face coboundary. In the context of a gml:TopoVolume the orientation attribute has no meaning.

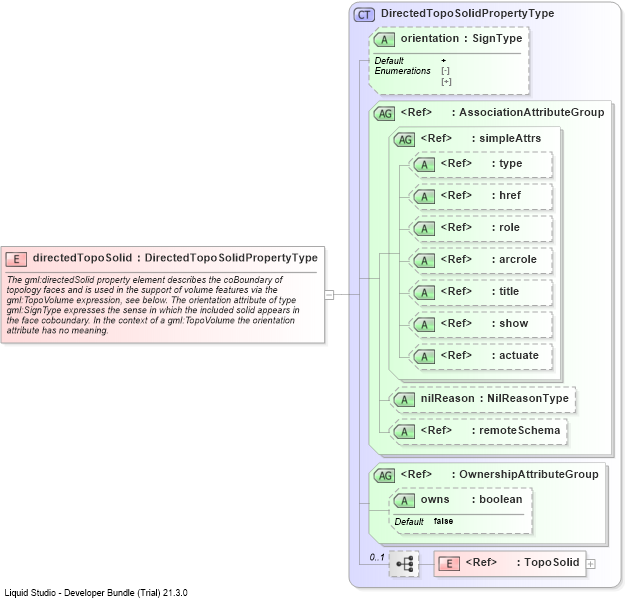

Collapse XSD Schema Diagram:
Drilldown into TopoSolidDrilldown into ownsDrilldown into OwnershipAttributeGroupDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupDrilldown into orientationDrilldown into DirectedTopoSolidPropertyTypeXSD Diagram of directedTopoSolid
Collapse XSD Schema Code:
<element name="directedTopoSolid" type="gml:DirectedTopoSolidPropertyType">
    <annotation>
        <documentation>The gml:directedSolid property element describes the coBoundary of topology faces and is used in the support of volume features via the gml:TopoVolume expression, see below. The orientation attribute of type gml:SignType expresses the sense in which the included solid appears in the face coboundary. In the context of a gml:TopoVolume the orientation attribute has no meaning.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TopoSolid gml:TopoSolid (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
orientation gml:orientation + (Optional)
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
owns gml:owns false (Optional)
Collapse Derivation Tree:
