Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: DirectedTopoSolidPropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: topology.xsd
Abstract

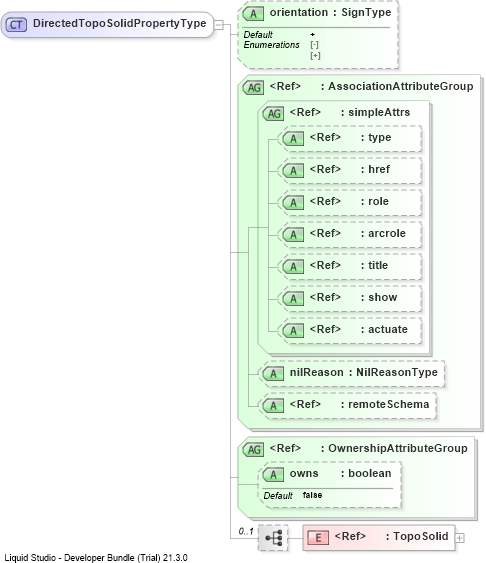

Collapse XSD Schema Diagram:
Drilldown into TopoSolidDrilldown into ownsDrilldown into OwnershipAttributeGroupDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupDrilldown into orientationXSD Diagram of DirectedTopoSolidPropertyType
Collapse XSD Schema Code:
<complexType name="DirectedTopoSolidPropertyType">
    <sequence minOccurs="0">
        <element ref="gml:TopoSolid" />
    </sequence>
    <attribute name="orientation" type="gml:SignType" default="+" />
    <attributeGroup ref="gml:AssociationAttributeGroup" />
    <attributeGroup ref="gml:OwnershipAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TopoSolid gml:TopoSolid (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
orientation gml:orientation + (Optional)
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
owns gml:owns false (Optional)
Collapse Derivation Tree:
Collapse References:
gml:directedTopoSolid
