Documentation for AIXM 5.1.1
Definition Type: Element
Name: Transformation
Namespace: http://www.opengis.net/gml/3.2
Type: gml:TransformationType
Containing Schema: coordinateOperations.xsd
Abstract
Documentation:
gml:Transformation is a concrete object element derived from gml:GeneralTransformation (13.6.2.13).
This concrete object can be used for all operation methods, without using a GML Application Schema that defines operation-method-specialized element names and contents, especially for methods with only one Transformation instance.
The parameterValue elements are an unordered list of composition associations to the set of parameter values used by this conversion operation.

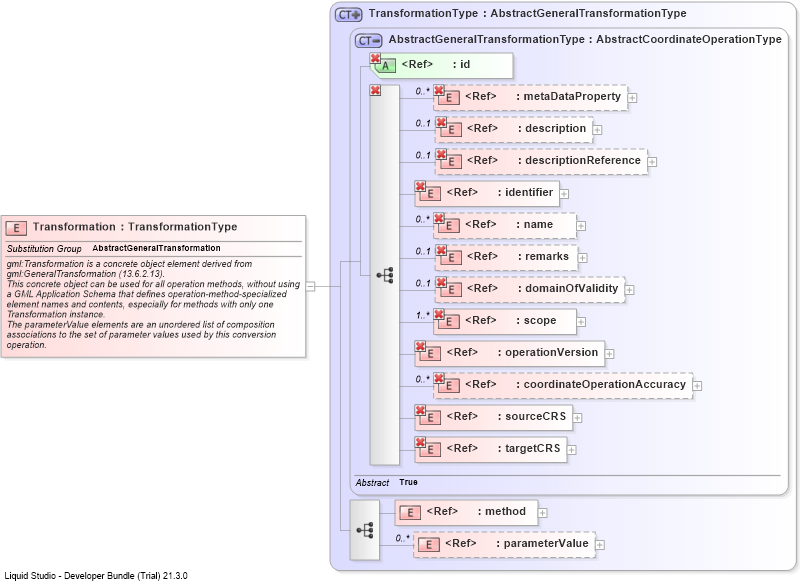

Collapse XSD Schema Diagram:
Drilldown into parameterValueDrilldown into methodDrilldown into targetCRSDrilldown into sourceCRSDrilldown into coordinateOperationAccuracyDrilldown into operationVersionDrilldown into scopeDrilldown into domainOfValidityDrilldown into remarksDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into idDrilldown into AbstractGeneralTransformationTypeDrilldown into TransformationTypeXSD Diagram of Transformation
Collapse XSD Schema Code:
<element name="Transformation" type="gml:TransformationType" substitutionGroup="gml:AbstractGeneralTransformation">
    <annotation>
        <documentation>gml:Transformation is a concrete object element derived from gml:GeneralTransformation (13.6.2.13).
This concrete object can be used for all operation methods, without using a GML Application Schema that defines operation-method-specialized element names and contents, especially for methods with only one Transformation instance.
The parameterValue elements are an unordered list of composition associations to the set of parameter values used by this conversion operation.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
domainOfValidity gml:domainOfValidity 0 (1)
scope gml:scope (1) unbounded
operationVersion gml:operationVersion 0 (1)
coordinateOperationAccuracy gml:coordinateOperationAccuracy 0 unbounded
sourceCRS gml:sourceCRS 0 (1)
targetCRS gml:targetCRS 0 (1)
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
domainOfValidity gml:domainOfValidity 0 (1)
scope gml:scope (1) unbounded
operationVersion gml:operationVersion (1) (1)
coordinateOperationAccuracy gml:coordinateOperationAccuracy 0 unbounded
sourceCRS gml:sourceCRS (1) (1)
targetCRS gml:targetCRS (1) (1)
method gml:method (1) (1)
parameterValue gml:parameterValue 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:AbstractGeneralTransformation
