Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: AirspaceVolumeType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AbstractAIXMObjectType
Containing Schema: AIXM_Features.xsd
Abstract

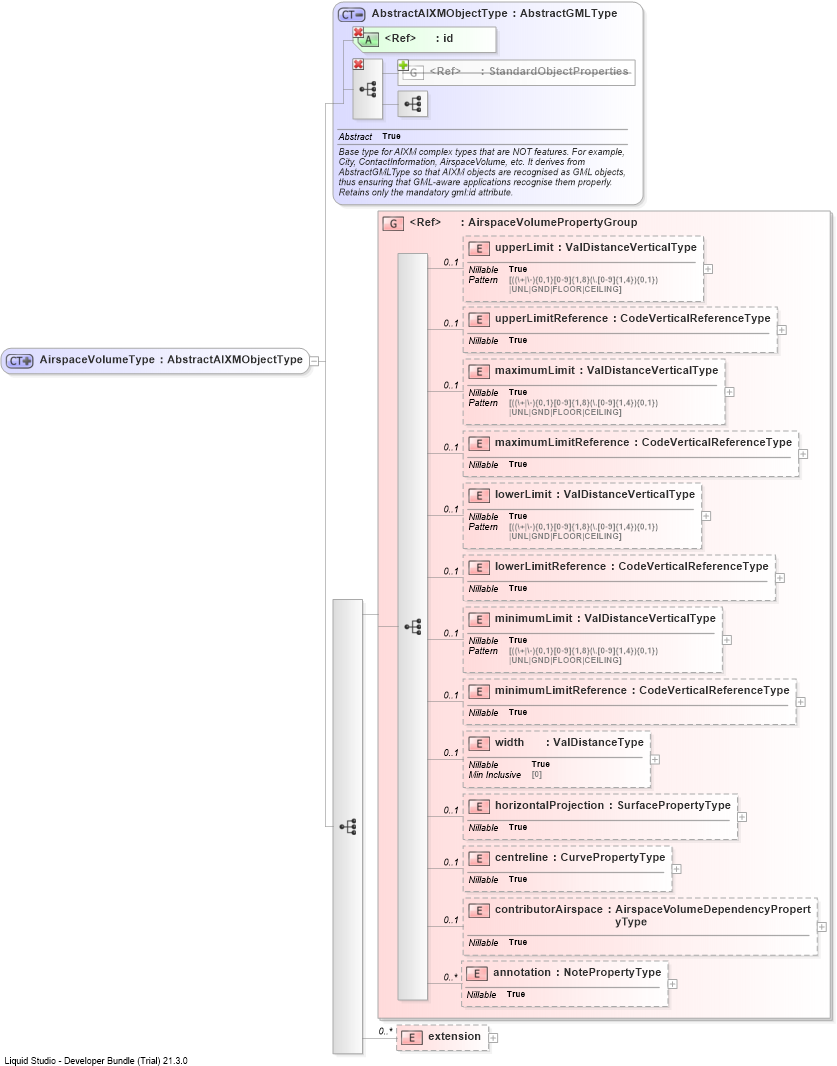

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into annotationDrilldown into contributorAirspaceDrilldown into centrelineDrilldown into horizontalProjectionDrilldown into widthDrilldown into minimumLimitReferenceDrilldown into minimumLimitDrilldown into lowerLimitReferenceDrilldown into lowerLimitDrilldown into maximumLimitReferenceDrilldown into maximumLimitDrilldown into upperLimitReferenceDrilldown into upperLimitDrilldown into AirspaceVolumePropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeXSD Diagram of AirspaceVolumeType
Collapse XSD Schema Code:
<complexType name="AirspaceVolumeType">
    <complexContent>
        <extension base="aixm:AbstractAIXMObjectType">
            <sequence>
                <group ref="aixm:AirspaceVolumePropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <choice>
                            <element ref="aixm:AbstractAirspaceVolumeExtension" />
                        </choice>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
upperLimit aixm:upperLimit 0 (1)
upperLimitReference aixm:upperLimitReference 0 (1)
maximumLimit aixm:maximumLimit 0 (1)
maximumLimitReference aixm:maximumLimitReference 0 (1)
lowerLimit aixm:lowerLimit 0 (1)
lowerLimitReference aixm:lowerLimitReference 0 (1)
minimumLimit aixm:minimumLimit 0 (1)
minimumLimitReference aixm:minimumLimitReference 0 (1)
width aixm:width 0 (1)
horizontalProjection aixm:horizontalProjection 0 1
centreline aixm:centreline 0 1
contributorAirspace aixm:contributorAirspace 0 1
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:AirspaceVolumePropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:AirspaceVolume
