Documentation for AIXM 5.1.1
Definition Type: Element
Name: DirectedObservation
Namespace: http://www.opengis.net/gml/3.2
Type: gml:DirectedObservationType
Containing Schema: observation.xsd
Abstract
Documentation:
A gml:DirectedObservation is the same as an observation except that it adds an additional gml:direction property. This is the direction in which the observation was acquired. Clearly this applies only to certain types of observations such as visual observations by people, or observations obtained from terrestrial cameras.

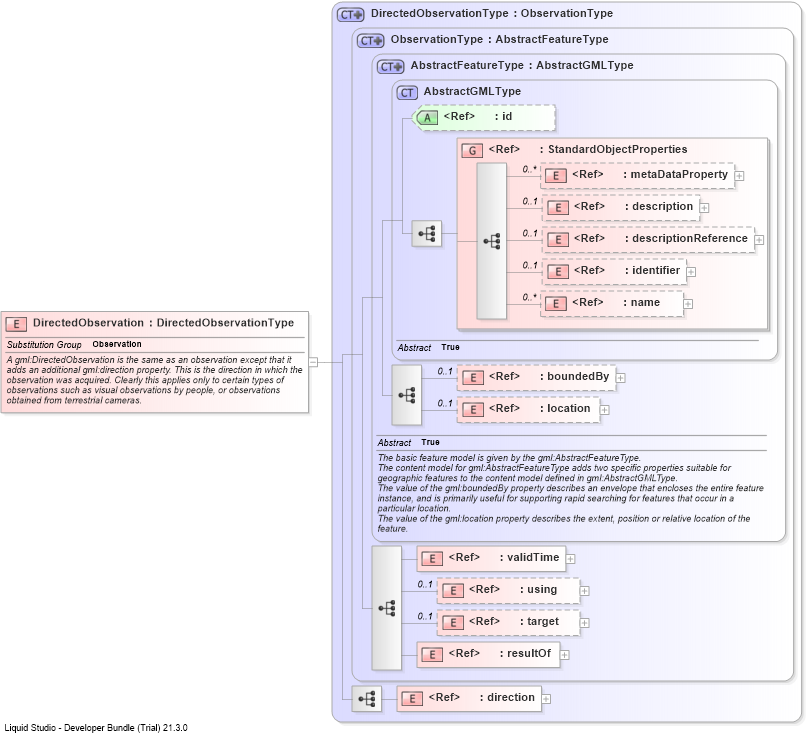

Collapse XSD Schema Diagram:
Drilldown into directionDrilldown into resultOfDrilldown into targetDrilldown into usingDrilldown into validTimeDrilldown into locationDrilldown into boundedByDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into AbstractFeatureTypeDrilldown into ObservationTypeDrilldown into DirectedObservationTypeXSD Diagram of DirectedObservation
Collapse XSD Schema Code:
<element name="DirectedObservation" type="gml:DirectedObservationType" substitutionGroup="gml:Observation">
    <annotation>
        <documentation>A gml:DirectedObservation is the same as an observation except that it adds an additional gml:direction property. This is the direction in which the observation was acquired. Clearly this applies only to certain types of observations such as visual observations by people, or observations obtained from terrestrial cameras.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
boundedBy gml:boundedBy 0 (1)
location gml:location 0 (1)
validTime gml:validTime (1) (1)
using gml:using 0 (1)
target gml:target 0 (1)
resultOf gml:resultOf (1) (1)
direction gml:direction (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
Collapse Derivation Tree:
Collapse References:
gml:Observation
