Documentation for AIXM 5.1.1
Definition Type: Element
Name: FlightRoutingElement
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:FlightRoutingElementType
Containing Schema: AIXM_Features.xsd
Abstract

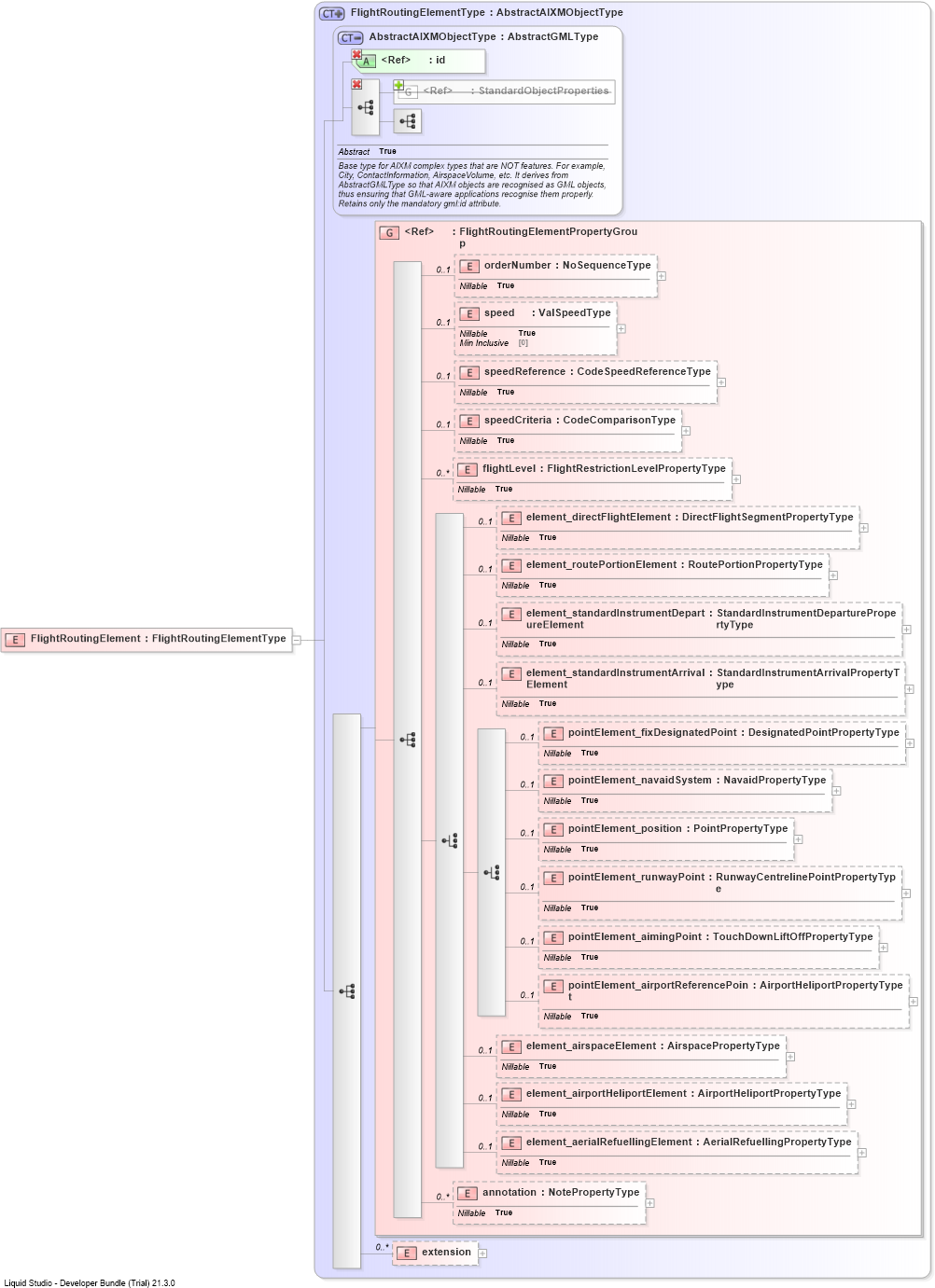

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into annotationDrilldown into element_aerialRefuellingElementDrilldown into element_airportHeliportElementDrilldown into element_airspaceElementDrilldown into pointElement_airportReferencePointDrilldown into pointElement_aimingPointDrilldown into pointElement_runwayPointDrilldown into pointElement_positionDrilldown into pointElement_navaidSystemDrilldown into pointElement_fixDesignatedPointDrilldown into element_standardInstrumentArrivalElementDrilldown into element_standardInstrumentDepartureElementDrilldown into element_routePortionElementDrilldown into element_directFlightElementDrilldown into flightLevelDrilldown into speedCriteriaDrilldown into speedReferenceDrilldown into speedDrilldown into orderNumberDrilldown into FlightRoutingElementPropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeDrilldown into FlightRoutingElementTypeXSD Diagram of FlightRoutingElement
Collapse XSD Schema Code:
<element name="FlightRoutingElement" type="aixm:FlightRoutingElementType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
orderNumber aixm:orderNumber 0 (1)
speed aixm:speed 0 (1)
speedReference aixm:speedReference 0 (1)
speedCriteria aixm:speedCriteria 0 (1)
flightLevel aixm:flightLevel 0 unbounded
element_directFlightElement aixm:element_directFlightElement 0 (1)
element_routePortionElement aixm:element_routePortionElement 0 (1)
element_standardInstrumentDepartureElement aixm:element_standardInstrumentDepartureElement 0 (1)
element_standardInstrumentArrivalElement aixm:element_standardInstrumentArrivalElement 0 (1)
pointElement_fixDesignatedPoint aixm:pointElement_fixDesignatedPoint 0 (1)
pointElement_navaidSystem aixm:pointElement_navaidSystem 0 (1)
pointElement_position aixm:pointElement_position 0 (1)
pointElement_runwayPoint aixm:pointElement_runwayPoint 0 (1)
pointElement_aimingPoint aixm:pointElement_aimingPoint 0 (1)
pointElement_airportReferencePoint aixm:pointElement_airportReferencePoint 0 (1)
element_airspaceElement aixm:element_airspaceElement 0 (1)
element_airportHeliportElement aixm:element_airportHeliportElement 0 (1)
element_aerialRefuellingElement aixm:element_aerialRefuellingElement 0 (1)
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:FlightRoutingElementPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
