Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: FlightRoutingElementType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AbstractAIXMObjectType
Containing Schema: AIXM_Features.xsd
Abstract

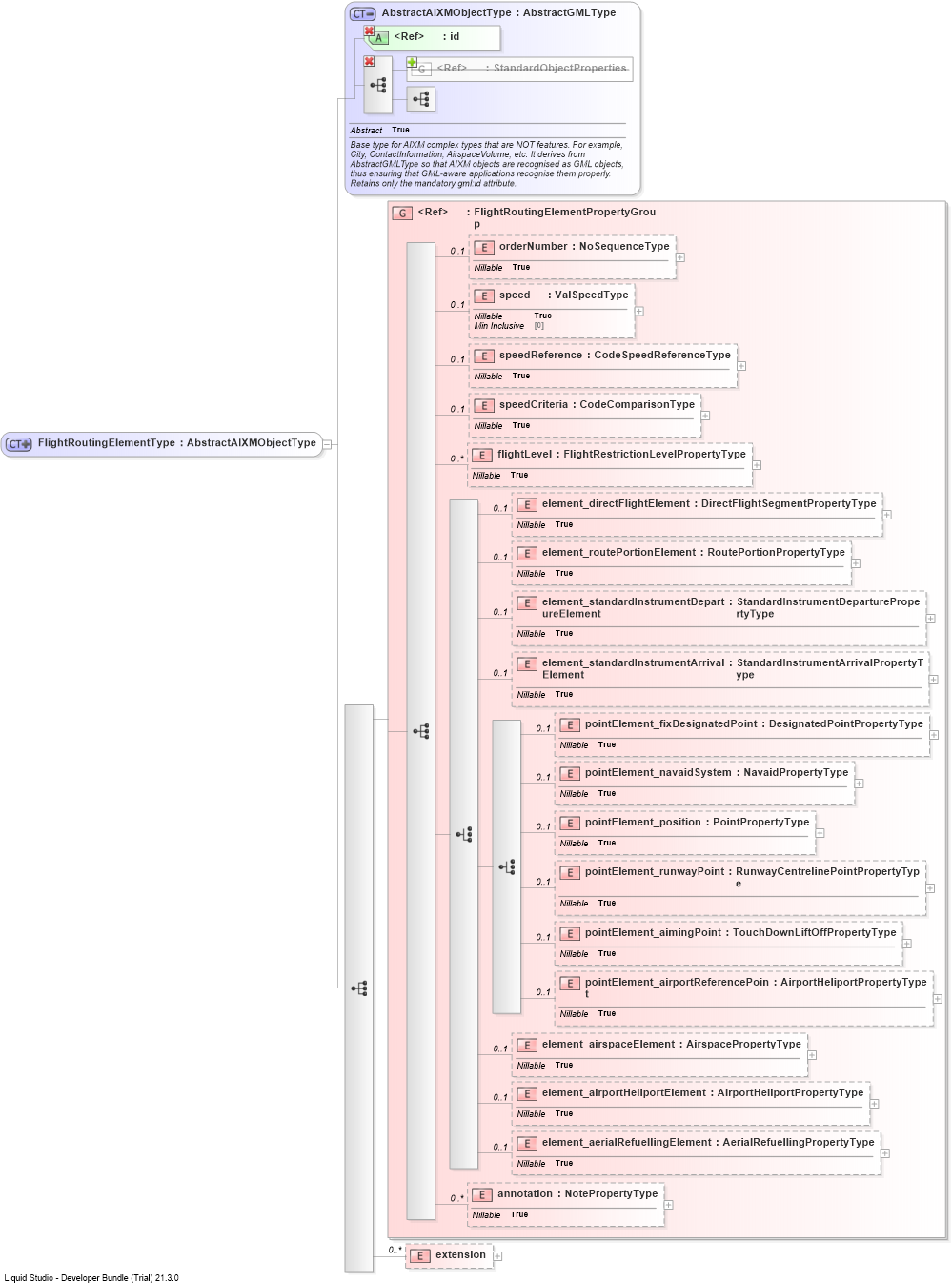

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into annotationDrilldown into element_aerialRefuellingElementDrilldown into element_airportHeliportElementDrilldown into element_airspaceElementDrilldown into pointElement_airportReferencePointDrilldown into pointElement_aimingPointDrilldown into pointElement_runwayPointDrilldown into pointElement_positionDrilldown into pointElement_navaidSystemDrilldown into pointElement_fixDesignatedPointDrilldown into element_standardInstrumentArrivalElementDrilldown into element_standardInstrumentDepartureElementDrilldown into element_routePortionElementDrilldown into element_directFlightElementDrilldown into flightLevelDrilldown into speedCriteriaDrilldown into speedReferenceDrilldown into speedDrilldown into orderNumberDrilldown into FlightRoutingElementPropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeXSD Diagram of FlightRoutingElementType
Collapse XSD Schema Code:
<complexType name="FlightRoutingElementType">
    <complexContent>
        <extension base="aixm:AbstractAIXMObjectType">
            <sequence>
                <group ref="aixm:FlightRoutingElementPropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <choice>
                            <element ref="aixm:AbstractFlightRoutingElementExtension" />
                        </choice>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
orderNumber aixm:orderNumber 0 (1)
speed aixm:speed 0 (1)
speedReference aixm:speedReference 0 (1)
speedCriteria aixm:speedCriteria 0 (1)
flightLevel aixm:flightLevel 0 unbounded
element_directFlightElement aixm:element_directFlightElement 0 (1)
element_routePortionElement aixm:element_routePortionElement 0 (1)
element_standardInstrumentDepartureElement aixm:element_standardInstrumentDepartureElement 0 (1)
element_standardInstrumentArrivalElement aixm:element_standardInstrumentArrivalElement 0 (1)
pointElement_fixDesignatedPoint aixm:pointElement_fixDesignatedPoint 0 (1)
pointElement_navaidSystem aixm:pointElement_navaidSystem 0 (1)
pointElement_position aixm:pointElement_position 0 (1)
pointElement_runwayPoint aixm:pointElement_runwayPoint 0 (1)
pointElement_aimingPoint aixm:pointElement_aimingPoint 0 (1)
pointElement_airportReferencePoint aixm:pointElement_airportReferencePoint 0 (1)
element_airspaceElement aixm:element_airspaceElement 0 (1)
element_airportHeliportElement aixm:element_airportHeliportElement 0 (1)
element_aerialRefuellingElement aixm:element_aerialRefuellingElement 0 (1)
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:FlightRoutingElementPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:FlightRoutingElement
