Definition Type: ComplexType
Name: GeometricComplexPropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: geometryComplexes.xsd
Abstract
Documentation:
A property that has a geometric complex as its value domain may either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element shall be given, but neither both nor none.

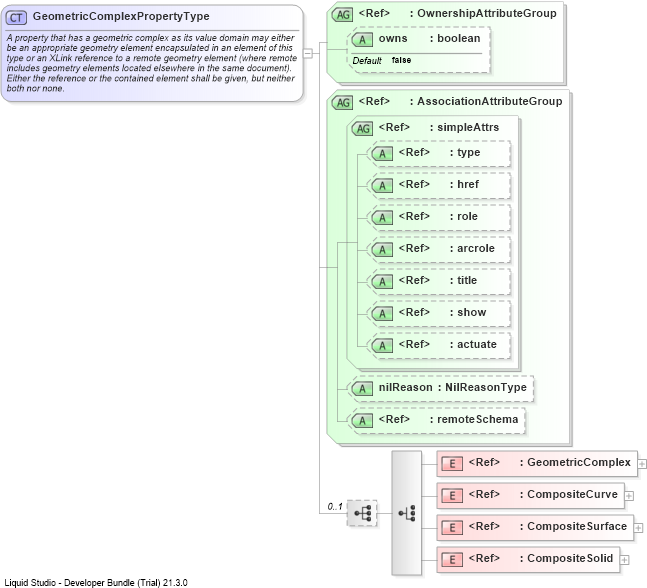

Collapse XSD Schema Diagram:
Drilldown into CompositeSolidDrilldown into CompositeSurfaceDrilldown into CompositeCurveDrilldown into GeometricComplexDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupDrilldown into ownsDrilldown into OwnershipAttributeGroupXSD Diagram of GeometricComplexPropertyType
Collapse XSD Schema Code:
<complexType name="GeometricComplexPropertyType">
    <annotation>
        <documentation>A property that has a geometric complex as its value domain may either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element shall be given, but neither both nor none.</documentation>
    </annotation>
    <sequence minOccurs="0">
        <choice>
            <element ref="gml:GeometricComplex" />
            <element ref="gml:CompositeCurve" />
            <element ref="gml:CompositeSurface" />
            <element ref="gml:CompositeSolid" />
        </choice>
    </sequence>
    <attributeGroup ref="gml:OwnershipAttributeGroup" />
    <attributeGroup ref="gml:AssociationAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
GeometricComplex gml:GeometricComplex (1) (1)
CompositeCurve gml:CompositeCurve (1) (1)
CompositeSurface gml:CompositeSurface (1) (1)
CompositeSolid gml:CompositeSolid (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
owns gml:owns false (Optional)
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
