Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: NodeOrEdgePropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: topology.xsd
Abstract

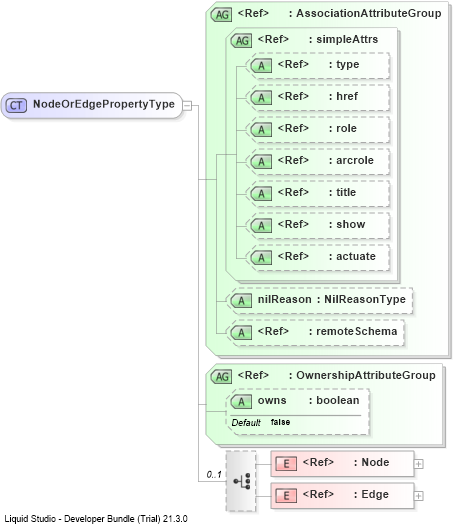

Collapse XSD Schema Diagram:
Drilldown into EdgeDrilldown into NodeDrilldown into ownsDrilldown into OwnershipAttributeGroupDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupXSD Diagram of NodeOrEdgePropertyType
Collapse XSD Schema Code:
<complexType name="NodeOrEdgePropertyType">
    <choice minOccurs="0">
        <element ref="gml:Node" />
        <element ref="gml:Edge" />
    </choice>
    <attributeGroup ref="gml:AssociationAttributeGroup" />
    <attributeGroup ref="gml:OwnershipAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Node gml:Node (1) (1)
Edge gml:Edge (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
owns gml:owns false (Optional)
Collapse Derivation Tree:
Collapse References:
gml:isolated
