Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: OrientableCurveType
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AbstractCurveType
Containing Schema: geometryPrimitives.xsd
Abstract

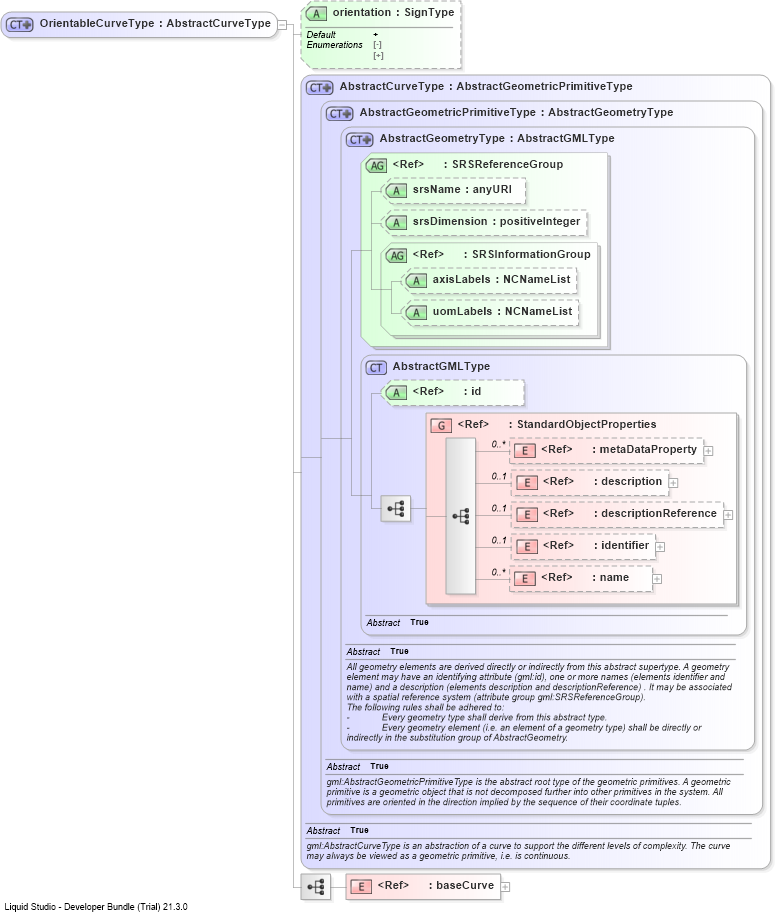

Collapse XSD Schema Diagram:
Drilldown into baseCurveDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into uomLabelsDrilldown into axisLabelsDrilldown into SRSInformationGroupDrilldown into srsDimensionDrilldown into srsNameDrilldown into SRSReferenceGroupDrilldown into AbstractGeometryTypeDrilldown into AbstractGeometricPrimitiveTypeDrilldown into AbstractCurveTypeDrilldown into orientationXSD Diagram of OrientableCurveType
Collapse XSD Schema Code:
<complexType name="OrientableCurveType">
    <complexContent>
        <extension base="gml:AbstractCurveType">
            <sequence>
                <element ref="gml:baseCurve" />
            </sequence>
            <attribute name="orientation" type="gml:SignType" default="+" />
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
baseCurve gml:baseCurve (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
orientation gml:orientation + (Optional)
Collapse Derivation Tree:
Collapse References:
gml:OrientableCurve
