Documentation for AIXM 5.1.1
Definition Type: Element
Name: OrientableCurve
Namespace: http://www.opengis.net/gml/3.2
Type: gml:OrientableCurveType
Containing Schema: geometryPrimitives.xsd
Abstract
Documentation:
OrientableCurve consists of a curve and an orientation. If the orientation is "+", then the OrientableCurve is identical to the baseCurve. If the orientation is "-", then the OrientableCurve is related to another AbstractCurve with a parameterization that reverses the sense of the curve traversal.

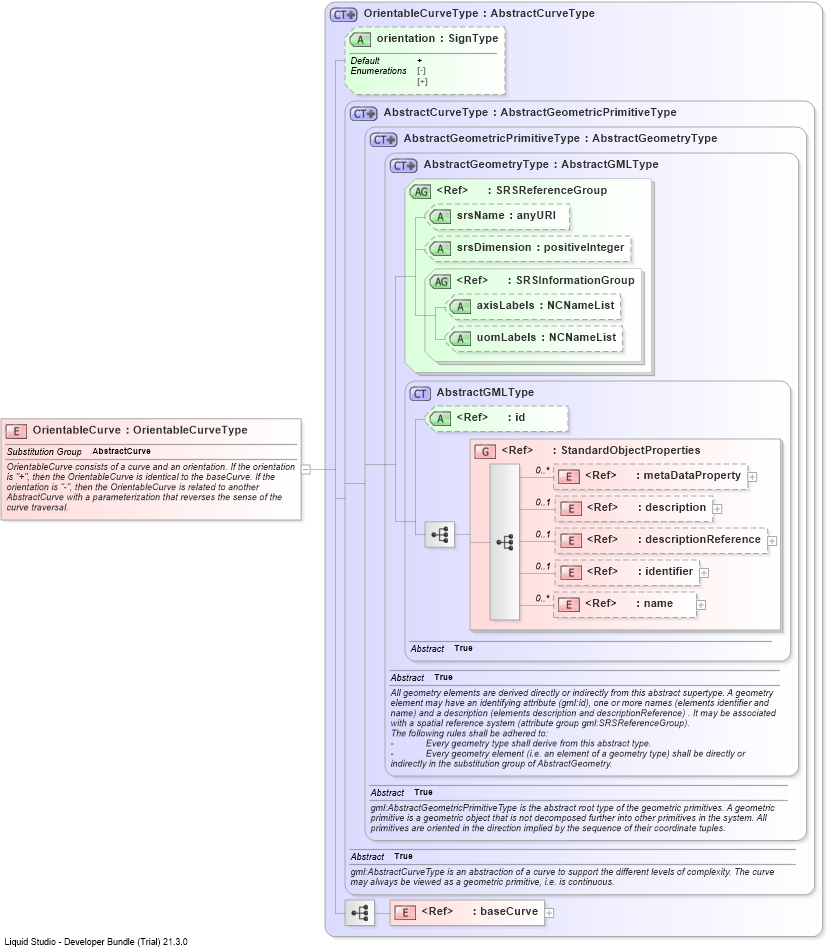

Collapse XSD Schema Diagram:
Drilldown into baseCurveDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into uomLabelsDrilldown into axisLabelsDrilldown into SRSInformationGroupDrilldown into srsDimensionDrilldown into srsNameDrilldown into SRSReferenceGroupDrilldown into AbstractGeometryTypeDrilldown into AbstractGeometricPrimitiveTypeDrilldown into AbstractCurveTypeDrilldown into orientationDrilldown into OrientableCurveTypeXSD Diagram of OrientableCurve
Collapse XSD Schema Code:
<element name="OrientableCurve" type="gml:OrientableCurveType" substitutionGroup="gml:AbstractCurve">
    <annotation>
        <documentation>OrientableCurve consists of a curve and an orientation. If the orientation is "+", then the OrientableCurve is identical to the baseCurve. If the orientation is "-", then the OrientableCurve is related to another AbstractCurve with a parameterization that reverses the sense of the curve traversal.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
baseCurve gml:baseCurve (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
orientation gml:orientation + (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractCurve
