Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: RunwayContaminationType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AbstractSurfaceContaminationType
Containing Schema: AIXM_Features.xsd
Abstract

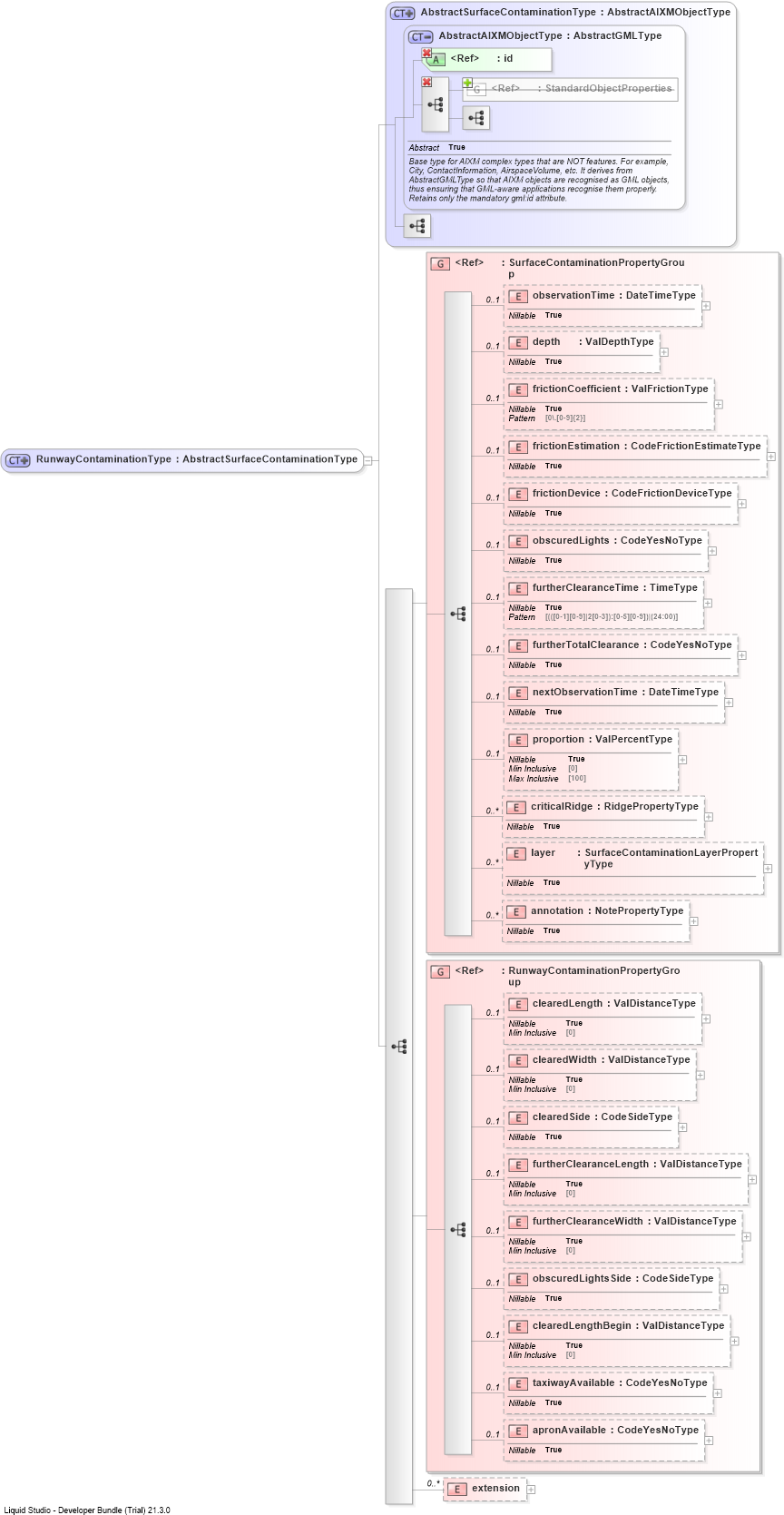

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into apronAvailableDrilldown into taxiwayAvailableDrilldown into clearedLengthBeginDrilldown into obscuredLightsSideDrilldown into furtherClearanceWidthDrilldown into furtherClearanceLengthDrilldown into clearedSideDrilldown into clearedWidthDrilldown into clearedLengthDrilldown into RunwayContaminationPropertyGroupDrilldown into annotationDrilldown into layerDrilldown into criticalRidgeDrilldown into proportionDrilldown into nextObservationTimeDrilldown into furtherTotalClearanceDrilldown into furtherClearanceTimeDrilldown into obscuredLightsDrilldown into frictionDeviceDrilldown into frictionEstimationDrilldown into frictionCoefficientDrilldown into depthDrilldown into observationTimeDrilldown into SurfaceContaminationPropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeDrilldown into AbstractSurfaceContaminationTypeXSD Diagram of RunwayContaminationType
Collapse XSD Schema Code:
<complexType name="RunwayContaminationType">
    <complexContent>
        <extension base="aixm:AbstractSurfaceContaminationType">
            <sequence>
                <group ref="aixm:SurfaceContaminationPropertyGroup" />
                <group ref="aixm:RunwayContaminationPropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <choice>
                            <element ref="aixm:AbstractSurfaceContaminationExtension" />
                            <element ref="aixm:AbstractRunwayContaminationExtension" />
                        </choice>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
observationTime aixm:observationTime 0 (1)
depth aixm:depth 0 (1)
frictionCoefficient aixm:frictionCoefficient 0 (1)
frictionEstimation aixm:frictionEstimation 0 (1)
frictionDevice aixm:frictionDevice 0 (1)
obscuredLights aixm:obscuredLights 0 (1)
furtherClearanceTime aixm:furtherClearanceTime 0 (1)
furtherTotalClearance aixm:furtherTotalClearance 0 (1)
nextObservationTime aixm:nextObservationTime 0 (1)
proportion aixm:proportion 0 (1)
criticalRidge aixm:criticalRidge 0 unbounded
layer aixm:layer 0 unbounded
annotation aixm:annotation 0 unbounded
clearedLength aixm:clearedLength 0 (1)
clearedWidth aixm:clearedWidth 0 (1)
clearedSide aixm:clearedSide 0 (1)
furtherClearanceLength aixm:furtherClearanceLength 0 (1)
furtherClearanceWidth aixm:furtherClearanceWidth 0 (1)
obscuredLightsSide aixm:obscuredLightsSide 0 (1)
clearedLengthBegin aixm:clearedLengthBegin 0 (1)
taxiwayAvailable aixm:taxiwayAvailable 0 (1)
apronAvailable aixm:apronAvailable 0 (1)
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:SurfaceContaminationPropertyGroup (1) (1)
<xs:group> aixm:RunwayContaminationPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:RunwayContamination
