Documentation for AIXM 5.1.1
Definition Type: Element
Name: SurfaceCharacteristics
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:SurfaceCharacteristicsType
Containing Schema: AIXM_Features.xsd
Abstract

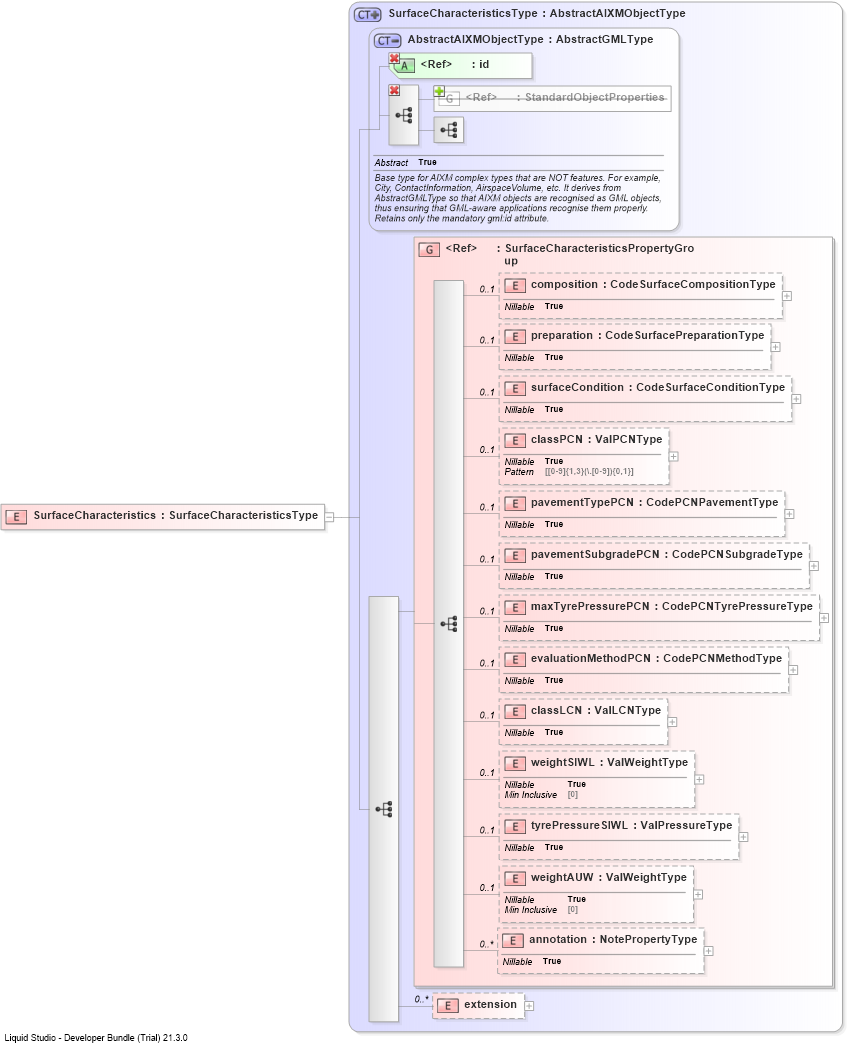

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into annotationDrilldown into weightAUWDrilldown into tyrePressureSIWLDrilldown into weightSIWLDrilldown into classLCNDrilldown into evaluationMethodPCNDrilldown into maxTyrePressurePCNDrilldown into pavementSubgradePCNDrilldown into pavementTypePCNDrilldown into classPCNDrilldown into surfaceConditionDrilldown into preparationDrilldown into compositionDrilldown into SurfaceCharacteristicsPropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeDrilldown into SurfaceCharacteristicsTypeXSD Diagram of SurfaceCharacteristics
Collapse XSD Schema Code:
<element name="SurfaceCharacteristics" type="aixm:SurfaceCharacteristicsType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
composition aixm:composition 0 (1)
preparation aixm:preparation 0 (1)
surfaceCondition aixm:surfaceCondition 0 (1)
classPCN aixm:classPCN 0 (1)
pavementTypePCN aixm:pavementTypePCN 0 (1)
pavementSubgradePCN aixm:pavementSubgradePCN 0 (1)
maxTyrePressurePCN aixm:maxTyrePressurePCN 0 (1)
evaluationMethodPCN aixm:evaluationMethodPCN 0 (1)
classLCN aixm:classLCN 0 (1)
weightSIWL aixm:weightSIWL 0 (1)
tyrePressureSIWL aixm:tyrePressureSIWL 0 (1)
weightAUW aixm:weightAUW 0 (1)
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:SurfaceCharacteristicsPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
