Definition Type: ComplexType
Name: SurfaceCharacteristicsType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AbstractAIXMObjectType
Containing Schema: AIXM_Features.xsd
Abstract

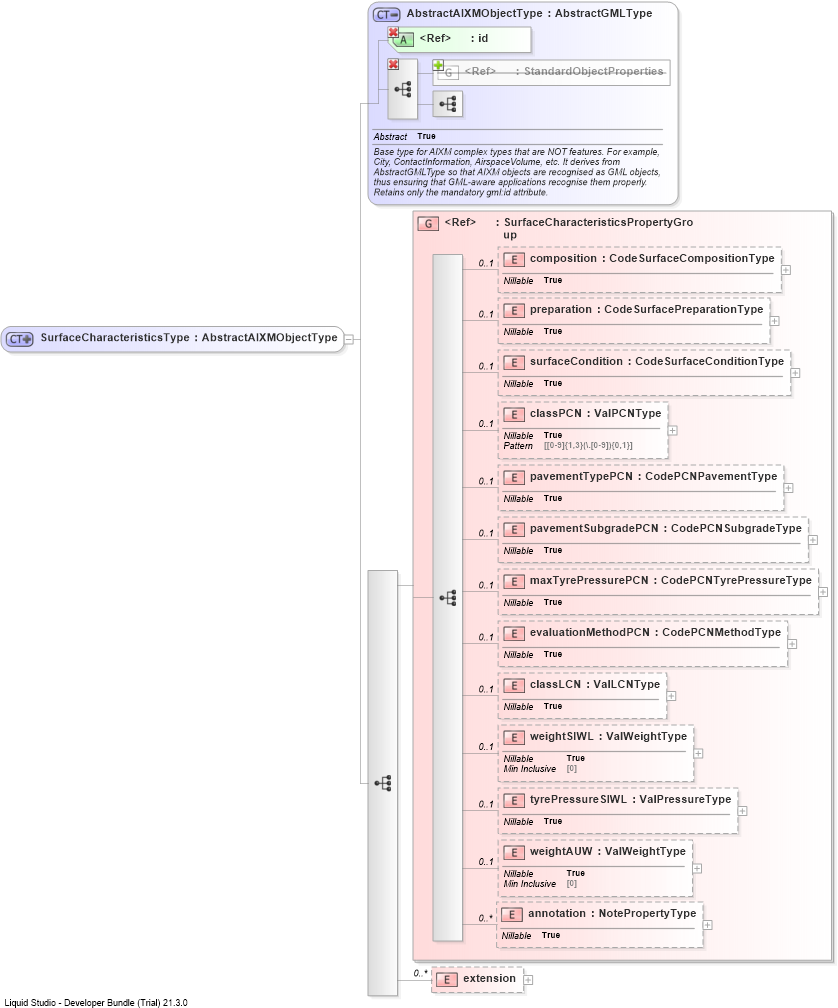

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into annotationDrilldown into weightAUWDrilldown into tyrePressureSIWLDrilldown into weightSIWLDrilldown into classLCNDrilldown into evaluationMethodPCNDrilldown into maxTyrePressurePCNDrilldown into pavementSubgradePCNDrilldown into pavementTypePCNDrilldown into classPCNDrilldown into surfaceConditionDrilldown into preparationDrilldown into compositionDrilldown into SurfaceCharacteristicsPropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeXSD Diagram of SurfaceCharacteristicsType
Collapse XSD Schema Code:
<complexType name="SurfaceCharacteristicsType">
    <complexContent>
        <extension base="aixm:AbstractAIXMObjectType">
            <sequence>
                <group ref="aixm:SurfaceCharacteristicsPropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <choice>
                            <element ref="aixm:AbstractSurfaceCharacteristicsExtension" />
                        </choice>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
composition aixm:composition 0 (1)
preparation aixm:preparation 0 (1)
surfaceCondition aixm:surfaceCondition 0 (1)
classPCN aixm:classPCN 0 (1)
pavementTypePCN aixm:pavementTypePCN 0 (1)
pavementSubgradePCN aixm:pavementSubgradePCN 0 (1)
maxTyrePressurePCN aixm:maxTyrePressurePCN 0 (1)
evaluationMethodPCN aixm:evaluationMethodPCN 0 (1)
classLCN aixm:classLCN 0 (1)
weightSIWL aixm:weightSIWL 0 (1)
tyrePressureSIWL aixm:tyrePressureSIWL 0 (1)
weightAUW aixm:weightAUW 0 (1)
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:SurfaceCharacteristicsPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:SurfaceCharacteristics
