Definition Type: ComplexType
Name: VerticalStructurePartType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AbstractPropertiesWithScheduleType
Containing Schema: AIXM_Features.xsd
Abstract
Collapse XSD Schema Diagram:

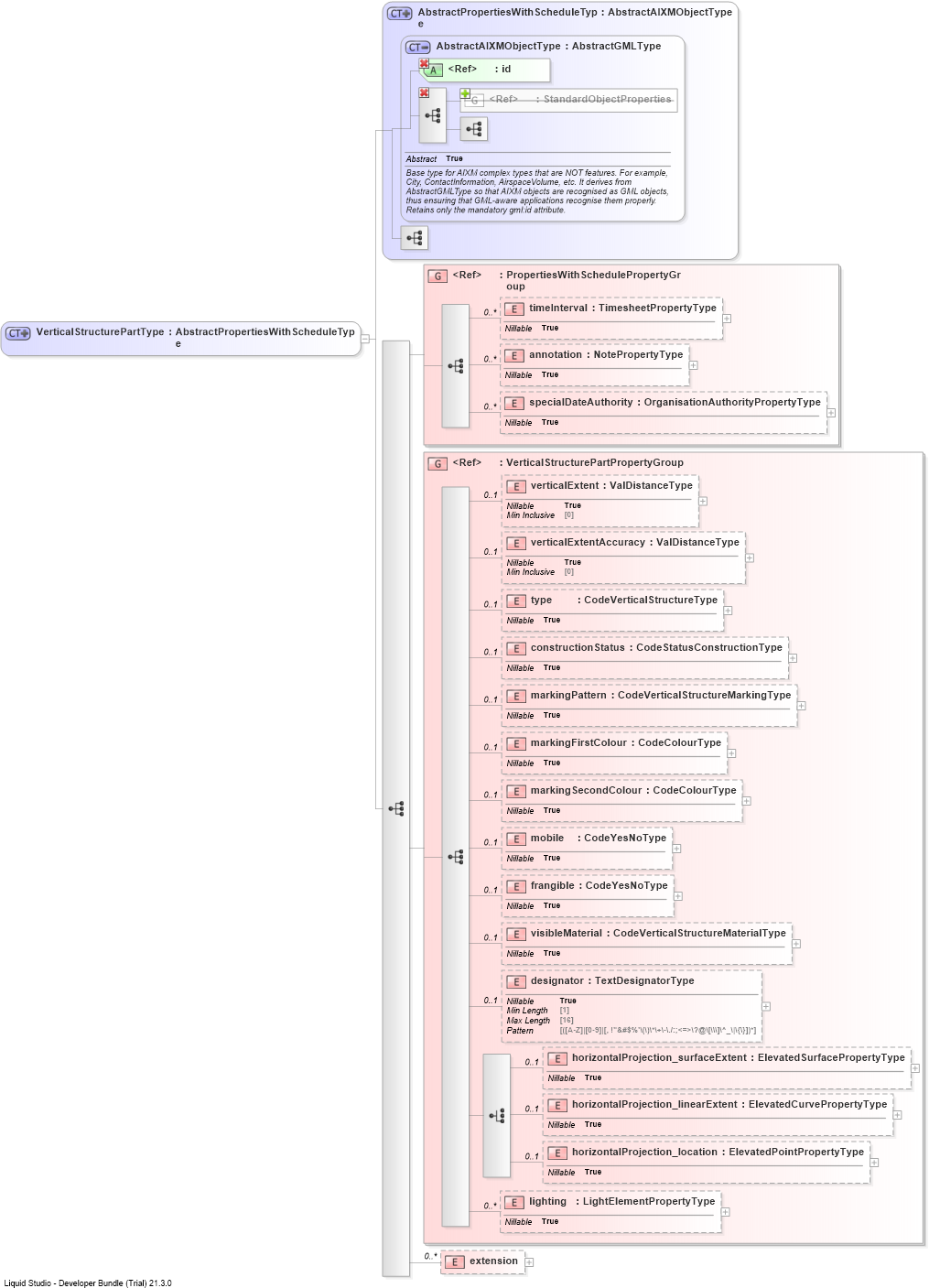

Drilldown into extensionDrilldown into lightingDrilldown into horizontalProjection_locationDrilldown into horizontalProjection_linearExtentDrilldown into horizontalProjection_surfaceExtentDrilldown into designatorDrilldown into visibleMaterialDrilldown into frangibleDrilldown into mobileDrilldown into markingSecondColourDrilldown into markingFirstColourDrilldown into markingPatternDrilldown into constructionStatusDrilldown into typeDrilldown into verticalExtentAccuracyDrilldown into verticalExtentDrilldown into VerticalStructurePartPropertyGroupDrilldown into specialDateAuthorityDrilldown into annotationDrilldown into timeIntervalDrilldown into PropertiesWithSchedulePropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeDrilldown into AbstractPropertiesWithScheduleTypeXSD Diagram of VerticalStructurePartType
Collapse XSD Schema Code:
<complexType name="VerticalStructurePartType">
    <complexContent>
        <extension base="aixm:AbstractPropertiesWithScheduleType">
            <sequence>
                <group ref="aixm:PropertiesWithSchedulePropertyGroup" />
                <group ref="aixm:VerticalStructurePartPropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <choice>
                            <element ref="aixm:AbstractPropertiesWithScheduleExtension" />
                            <element ref="aixm:AbstractVerticalStructurePartExtension" />
                        </choice>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
timeInterval aixm:timeInterval 0 unbounded
annotation aixm:annotation 0 unbounded
specialDateAuthority aixm:specialDateAuthority 0 unbounded
verticalExtent aixm:verticalExtent 0 (1)
verticalExtentAccuracy aixm:verticalExtentAccuracy 0 (1)
type aixm:type 0 (1)
constructionStatus aixm:constructionStatus 0 (1)
markingPattern aixm:markingPattern 0 (1)
markingFirstColour aixm:markingFirstColour 0 (1)
markingSecondColour aixm:markingSecondColour 0 (1)
mobile aixm:mobile 0 (1)
frangible aixm:frangible 0 (1)
visibleMaterial aixm:visibleMaterial 0 (1)
designator aixm:designator 0 (1)
horizontalProjection_surfaceExtent aixm:horizontalProjection_surfaceExtent 0 (1)
horizontalProjection_linearExtent aixm:horizontalProjection_linearExtent 0 (1)
horizontalProjection_location aixm:horizontalProjection_location 0 (1)
lighting aixm:lighting 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:PropertiesWithSchedulePropertyGroup (1) (1)
<xs:group> aixm:VerticalStructurePartPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:VerticalStructurePart
