Documentation for AIXM 5.1.1
Definition Type: Element
Name: ProcedureTransition
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:ProcedureTransitionType
Containing Schema: AIXM_Features.xsd
Abstract
Collapse XSD Schema Diagram:

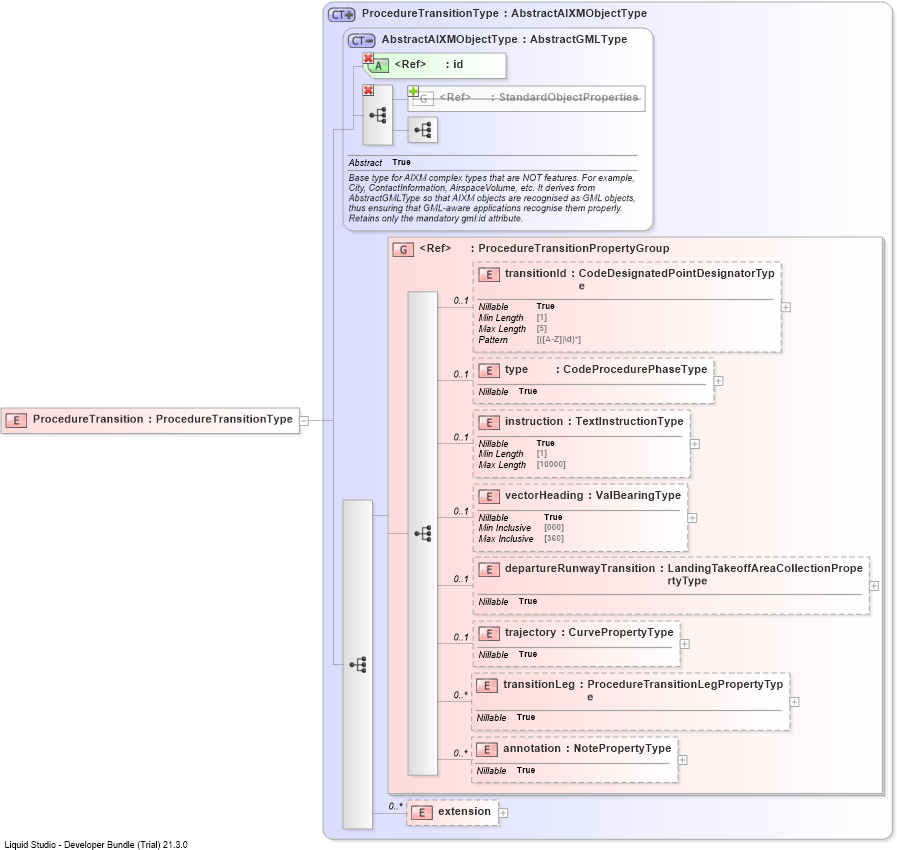

Drilldown into extensionDrilldown into annotationDrilldown into transitionLegDrilldown into trajectoryDrilldown into departureRunwayTransitionDrilldown into vectorHeadingDrilldown into instructionDrilldown into typeDrilldown into transitionIdDrilldown into ProcedureTransitionPropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeDrilldown into ProcedureTransitionTypeXSD Diagram of ProcedureTransition
Collapse XSD Schema Code:
<element name="ProcedureTransition" type="aixm:ProcedureTransitionType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
transitionId aixm:transitionId 0 (1)
type aixm:type 0 (1)
instruction aixm:instruction 0 (1)
vectorHeading aixm:vectorHeading 0 (1)
departureRunwayTransition aixm:departureRunwayTransition 0 1
trajectory aixm:trajectory 0 1
transitionLeg aixm:transitionLeg 0 unbounded
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:ProcedureTransitionPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
