Definition Type:	ComplexType
Name:	ProcedureTransitionType
Namespace:	http://www.aixm.aero/schema/5.1.1
Type:	aixm:AbstractAIXMObjectType
Containing Schema:	AIXM_Features.xsd
Abstract

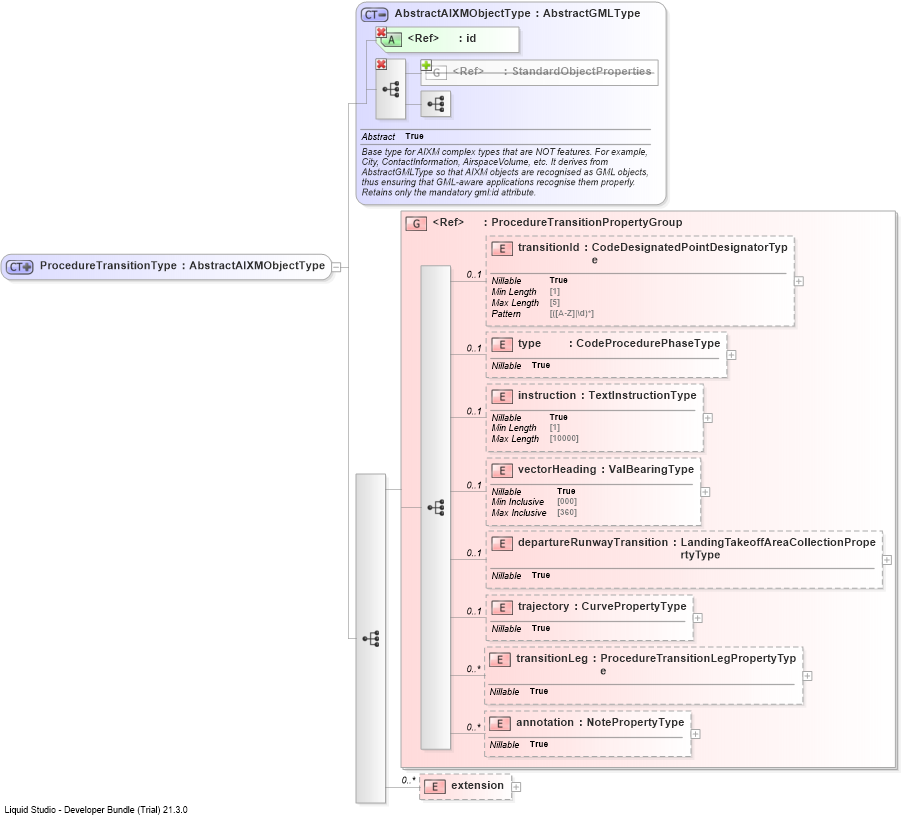

XSD Schema Diagram:

XSD Schema Code:

<complexType name="ProcedureTransitionType">
    <complexContent>
        <extension base="aixm:AbstractAIXMObjectType">
            <sequence>
                <group ref="aixm:ProcedureTransitionPropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <choice>
                            <element ref="aixm:AbstractProcedureTransitionExtension" />
                        </choice>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>

Child Elements:

Name	Type	Min Occurs	Max Occurs
metaDataProperty	gml:metaDataProperty	0	unbounded
description	gml:description	0	(1)
descriptionReference	gml:descriptionReference	0	(1)
identifier	gml:identifier	0	(1)
name	gml:name	0	unbounded
transitionId	aixm:transitionId	0	(1)
type	aixm:type	0	(1)
instruction	aixm:instruction	0	(1)
vectorHeading	aixm:vectorHeading	0	(1)
departureRunwayTransition	aixm:departureRunwayTransition	0	1
trajectory	aixm:trajectory	0	1
transitionLeg	aixm:transitionLeg	0	unbounded
annotation	aixm:annotation	0	unbounded
extension	aixm:extension	0	unbounded
<xs:group>	gml:StandardObjectProperties	(1)	(1)
<xs:group>	aixm:ProcedureTransitionPropertyGroup	(1)	(1)

Child Attributes:

Name	Type	Default Value	Use
id	gml:id		Required

Derivation Tree:
	gml:AbstractGMLType aixm:AbstractAIXMObjectType *ProcedureTransitionType* aixm:ProcedureTransition

References:
	aixm:ProcedureTransition
